Rigid-Flex PCB Cost Breakdown: What Drives Pricing and How to Optimize

Quick Answer: What Does Rigid-Flex Cost?

Compare to equivalent rigid-only:

• 4L rigid: $100-200 prototype, $3-6/pc production
• 6L rigid: $150-300 prototype, $5-10/pc production

The premium is 5-10x for rigid-flex vs rigid-only at the same layer count.

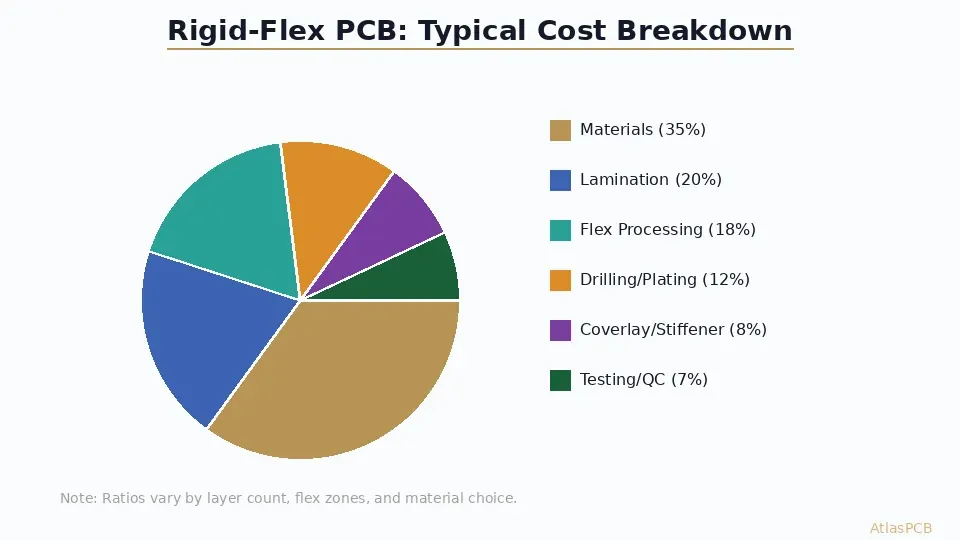

The Cost Breakdown: Where Your Money Goes

Materials (35% of total cost)

The single largest cost driver. Rigid-flex requires:

Optimization: Use adhesiveless (2-layer) flex cores where possible. They cost less than 3-layer constructions and have better flex endurance.

Lamination (20% of total cost)

Rigid-flex boards require sequential lamination:

1. First press: Bond flex core layers together
2. Second press: Laminate rigid sections onto flex (with controlled no-flow prepreg)
3. Sometimes third press: For complex bookbinder constructions

Each press cycle adds:

• $50-100 per panel in labor and machine time
• Risk of delamination (yield loss 5-15% per cycle)
• 1-2 days of production time

Standard rigid boards use a single press cycle.

Flex-Specific Processing (18% of total cost)

Unique steps that rigid boards skip:

• Coverlay application: Manual alignment and pressing of polyimide cover film
• Plasma de-smear: More critical for polyimide than FR-4
• Selective plating: Different copper thickness requirements for flex vs rigid zones
• Laser cutting/routing: Flex outlines require precision routing (not V-score)
• Controlled-depth routing: Removing rigid material without cutting flex layers

COST OPTIMIZATION

Get a Rigid-Flex Quote in 24 Hours

We break down costs by layer count, material, and flex zone complexity. Know exactly where your budget goes before committing.

Upload Design for Quote ›

7 Ways to Reduce Rigid-Flex Cost by 20-40%

1. Minimize Flex Layer Count

Every flex layer adds polyimide material cost and lamination complexity.

• Best case: 1-2 flex layers (signals + ground reference)
• Expensive: 4+ flex layers with impedance control
• Cost savings: Reducing from 4 flex layers to 2 saves 25-30% on material alone

Route only essential connections through the flex zone. Move non-critical routing to the rigid sections.

2. Reduce Flex Zones

Each flex zone requires:

• Controlled-depth routing on both sides
• Separate coverlay alignment
• No-flow prepreg placement

Savings: Consolidating 3 flex zones into 1 longer flex zone can save 15-20%.

3. Use Coverlay Instead of Photoimageable Flex Mask

Photoimageable solder mask on flex:

• Costs 2-3x more than coverlay
• Cracks during repeated flexing
• Only needed when you have fine-pitch components ON the flex zone

Use standard coverlay (polyimide + acrylic adhesive) unless you need solder mask openings on the flex section.

4. Relax Trace/Space on Flex Layers

Flex layers using 3/3 mil trace/space require:

• Thinner copper (0.5 oz base + plating)
• Tighter etch control
• Higher yield loss

Using 4/4 mil or 5/5 mil on flex layers increases yield 10-15% and reduces per-unit cost.

5. Standard Panel Utilization

Rigid-flex boards often have odd shapes that waste panel space. Work with your fab to:

• Adjust board outline to maximize panels-per-sheet
• Allow rotation for better nesting
• Keep flex tails within a standard panel rectangle

Typical utilization: Rigid boards 75-85%. Rigid-flex 40-65%. Every 10% improvement in utilization directly reduces per-board cost by 10%.

6. Choose the Right Stiffener Material

Use FR-4 stiffeners unless you need specific thermal or EMI properties.

7. Design for Standard Bend Radius

Tight bend radii (< 6x flex thickness) require:

• Thinner copper (rolled annealed, not electrodeposited)
• Adhesiveless flex construction
• Additional flex testing (costs extra)

Design for 10x bend radius when possible. This allows standard materials and processes.

RIGID-FLEX SPECIALISTS

Up to 22-Layer Rigid-Flex Capability

From simple 2L flex tails to complex 22-layer rigid-flex with HDI microvias. We optimize your design for cost before production.

View Rigid-Flex Services ›

When Rigid-Flex Saves Money (Total System Cost)

Rigid-flex looks expensive in isolation. But compare total system cost:

Scenario: Wearable medical device, 3 PCBs connected

Option A: Rigid + FPC cables

Option B: Single rigid-flex

Rigid-flex wins by $7.50/unit at volume, plus:

• Smaller form factor (no connector height)
• Better reliability (no connector mating cycles)
• Lighter weight (critical for wearables)

The crossover point varies, but above 500 units/year, rigid-flex often wins on total cost.

DESIGN REVIEW

Not Sure If Rigid-Flex Is Right?

Send us your assembly — we compare rigid+cables vs rigid-flex total cost. Sometimes cables win. We will tell you honestly.

Compare Options ›

Volume Pricing: What to Expect

Volume breaks come from:

• Panel optimization (better utilization at scale)
• Material bulk pricing (polyimide sheets, coverlay rolls)
• Amortized tooling (routing programs, test fixtures)
• Yield improvement (process stabilizes after first 50 panels)

Standards and Documentation

Why Rigid-Flex Manufacturer Selection Matters More Than Standard PCBs

Rigid-flex PCB manufacturing is genuinely difficult. The yield rates are lower, the process windows are tighter, and the failure modes are subtler than standard rigid boards. Choosing the wrong manufacturer for rigid-flex is more costly than for any other PCB type, because a failed rigid-flex run wastes expensive materials and weeks of lead time.

What to look for in a rigid-flex PCB manufacturer:

Dedicated flex processing line. Rigid-flex cannot be manufactured on the same equipment and with the same processes as rigid-only boards. The polyimide handling, coverlay application, and controlled-depth routing require specialized equipment. A manufacturer that treats rigid-flex as a side capability rather than a core competency will have lower yields and longer lead times.

Bend radius verification. A qualified rigid-flex manufacturer validates minimum bend radius during DFM review and can provide test coupons demonstrating flex zone reliability at your specified bend count. They should catch common errors like trace routing perpendicular to the bend axis or vias placed too close to the rigid-flex transition zone.

Lamination cycle expertise. Rigid-flex with multiple flex zones requires sequential lamination — each zone is a separate press cycle with distinct parameters. Getting this wrong causes delamination that only appears after assembly or environmental testing. Ask about their sequential lamination capability and first-pass yield on multi-zone designs.

Cost transparency. Because rigid-flex is inherently expensive, you want a manufacturer who can show you exactly where your money goes and suggest design changes that reduce cost without affecting function. That is what this entire guide is about — and it is the service we provide with every rigid-flex quote at AtlasPCB.

AtlasPCB specializes in rigid-flex PCBs from simple single-zone prototypes to complex multi-zone production assemblies. Every rigid-flex order includes a free DFM review with specific cost optimization recommendations.

ATLASPCB

Get Your Rigid-Flex Quote — Cost Breakdown Included

We show you exactly where your money goes: materials, lamination, processing, testing. Optimize before you commit.

Get Detailed Quote ›
