Copper Roughness and High-Speed Signal Loss: How Foil Profile Affects PCB Performance Above 10 GHz

Why Copper Roughness Matters for High-Speed PCBs

As serial link data rates push beyond 25 Gbps NRZ and into 56–112 Gbps PAM4 territory, every fraction of a decibel in channel loss budget matters. While PCB designers routinely optimize trace width, dielectric thickness, and material Dk/Df, one parameter often receives insufficient attention: copper foil surface roughness.

The copper conductor surface is not optically smooth. Electrodeposited (ED) copper foil has a deliberate “tooth” structure on the matte side that promotes adhesion to prepreg resin during lamination. This roughness forces high-frequency current—concentrated in the skin depth layer—to travel a longer effective path, converting electromagnetic energy into heat.

At 1 GHz the additional loss from roughness is modest (5–15% above smooth-conductor predictions). But roughness loss scales with frequency: at 25 GHz, standard foil can double the conductor loss compared to an ideally smooth surface. For a 12-inch backplane trace, that difference can consume your entire link margin.

How Roughness Increases Conductor Loss

The Skin Effect Foundation

At DC, current distributes uniformly through the conductor cross-section. As frequency increases, current crowds toward the surface. The skin depth δ is:

δ = 1 / √(π·f·µ·σ)

At 10 GHz in copper, δ ≈ 0.66 µm. When surface roughness features (peaks and valleys) are comparable to or larger than the skin depth, the current path becomes tortuous. Instead of flowing in a straight line along the trace length, it must navigate over and around the rough topology.

Roughness-to-Skin-Depth Ratio

The critical parameter is the ratio of RMS roughness to skin depth (Rrms/δ). When this ratio:

• < 0.1: Roughness effect negligible (< 2% additional loss)
• 0.1 to 1.0: Moderate impact (10–50% additional loss)
• > 1.0: Severe impact (50–100%+ additional loss)

For standard ED foil (Rz ≈ 10 µm, Rrms ≈ 3–4 µm), the ratio exceeds 1.0 above ~5 GHz. This is precisely the frequency range where modern high-speed interfaces operate.

The Huray Model

The IPC and IEEE community have adopted the Huray snowball model as the most physically accurate roughness correction factor. Unlike the older Hammerstad model (which saturates at a 2× correction factor), the Huray model represents the rough surface as a collection of spherical protrusions (snowballs) with defined radius and density:

K_rough = 1 + (3/2) · N_sphere · A_sphere · [1/(1 + δ/a)]

Where:

• N_sphere = number of spheres per unit area (tile density)
• A_sphere = surface area of each sphere
• a = sphere radius
• δ = skin depth

This model correctly predicts roughness loss factors of 2.5–3.5× at millimeter-wave frequencies for standard foil, matching measurements from VNA-based insertion loss characterization.

Copper Foil Classification and Selection

Industry-Standard Profiles

The PCB industry classifies copper foil roughness into several grades:

Manufacturer Specifications

Leading foil manufacturers include:

• Mitsui (MicroThin): HVLP foil with Rz ≤ 2.5 µm
• Fukuda (CF-T9): VLP with controlled nodulation
• Circuit Foil (Lithoglas): ULVP with Rz < 1.5 µm
• Olin (ToughPitch Plus): RTF options for cost-sensitive designs

When specifying laminate materials for high-speed designs, the foil grade is embedded in the laminate product name. For example, Panasonic Megtron 7 is available with both standard and HVLP foil options—always verify which variant your fabricator stocks.

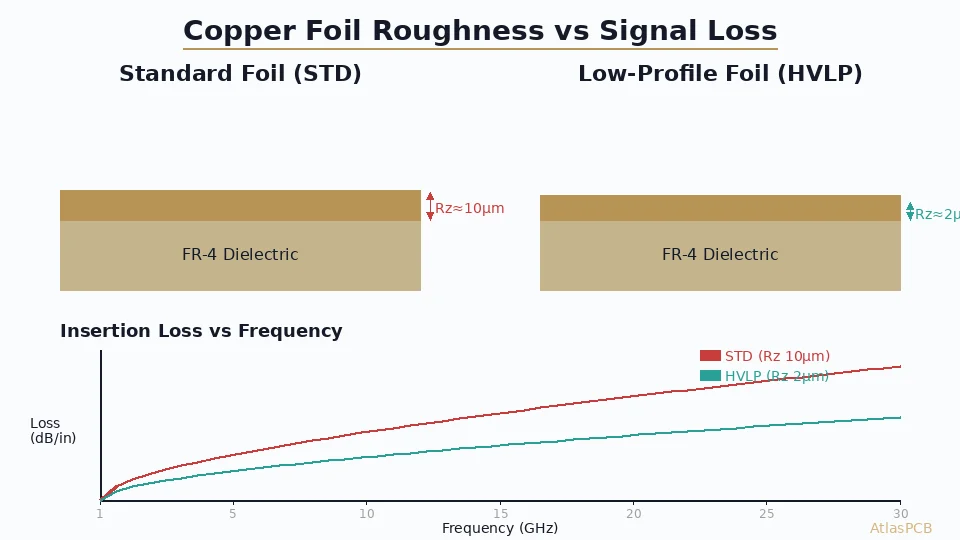

Quantifying the Loss Difference

Measurement Methodology

To characterize roughness-induced loss, engineers use differential insertion loss testing:

1. Fabricate two identical test coupons: one with STD foil, one with HVLP, on the same dielectric
2. Measure S21 (insertion loss) using a calibrated VNA from 100 MHz to 50 GHz
3. Subtract dielectric loss (known from Dk/Df) to isolate conductor loss
4. Compare conductor loss between foil grades

Typical Results (12-inch stripline trace, Dk 3.4)

At 14 GHz (the Nyquist frequency for 56 Gbps PAM4), switching from STD to HVLP recovers 1.7 dB—often the difference between a passing and failing eye diagram.

PCB Design Implications

Stackup Planning

When specifying a high-speed stackup:

1. Signal layers: Use HVLP or ULVP foil on all signal layers carrying 10G+ traffic
2. Reference planes: Standard foil is acceptable for ground/power planes since current flows on the plane side facing the signal layer—that surface roughness is the laminate-side profile (typically smoother)
3. Cost trade-off: Specify HVLP only where needed. A hybrid approach (HVLP on critical signal layers, STD elsewhere) reduces cost by 15–20% versus all-HVLP construction

Simulation Accuracy

If your SI simulation tool uses a simple Hammerstad roughness model, you may be under-predicting loss for standard foil and over-predicting the benefit of smooth foil. Modern tools (Ansys HFSS, Keysight ADS, Cadence Clarity) support Huray model parameters. Request the sphere radius and hall-sphere tile ratio from your laminate supplier for accurate correlation.

DFM Considerations

Smooth foil creates fabrication challenges:

• Reduced peel strength: Specify oxide-alternative (brown/black oxide) treatment. Minimum peel strength per IPC-6012 Class 3: 6 lb/inch for internal layers
• Delamination risk: Ensure proper plasma desmear and resin-to-foil adhesion testing during first-article qualification
• Pattern plating: HVLP foil may require adjusted imaging parameters due to different surface reflectivity during LDI exposure

Trace Width Adjustment

Lower roughness means slightly lower effective conductor loss, which can allow:

• Narrower traces (saving routing space) while meeting the same loss budget
• Longer traces at the same width while meeting the same loss budget
• Both advantages are modest (5–10%) but meaningful in dense BGA breakout regions

Beyond Roughness: System-Level Loss Budget

Copper roughness is one component of total channel loss. A complete loss budget includes:

The roughness adder represents 10–20% of total channel loss—enough to determine pass/fail for marginal channels.

Practical Guidelines for Engineers

When to Specify HVLP/ULVP

• Always for 25G+ NRZ or 56G+ PAM4 channels
• Recommended for 10G–25G channels longer than 8 inches
• Optional for 10G channels under 6 inches on low-loss dielectrics
• Not needed for sub-5 Gbps interfaces (I²C, SPI, UART, USB 2.0)

Questions for Your Fabricator

1. What foil grades are available on your stocked laminates?
2. What is the measured Rz and Rrms on your production panels?
3. Can you provide Huray model parameters (sphere radius, tile ratio)?
4. What peel strength do you achieve with HVLP on [your specified laminate]?
5. Do you offer VNA-based insertion loss measurement for qualification?

Cost Impact

HVLP foil typically adds 8–15% to raw laminate cost. For a 16-layer board on Megtron 6:

• STD foil: ~$45/panel
• HVLP on all layers: ~$52/panel (+15%)
• HVLP on signal layers only (6 of 16): ~$48/panel (+7%)

The cost is modest relative to the routing density and performance benefits.
