Sequential Lamination vs Build-Up HDI: Choosing the Right Process for High-Density PCB Design

Understanding the Two Fundamental HDI Approaches

High-density interconnect (HDI) PCB manufacturing uses two fundamentally different process flows to achieve multilayer connectivity. The choice between sequential lamination and build-up (SBU — Sequential Build-Up) determines your design’s routing density, reliability profile, cost structure, and manufacturing lead time.

Sequential Lamination: The Traditional Approach

Process Overview

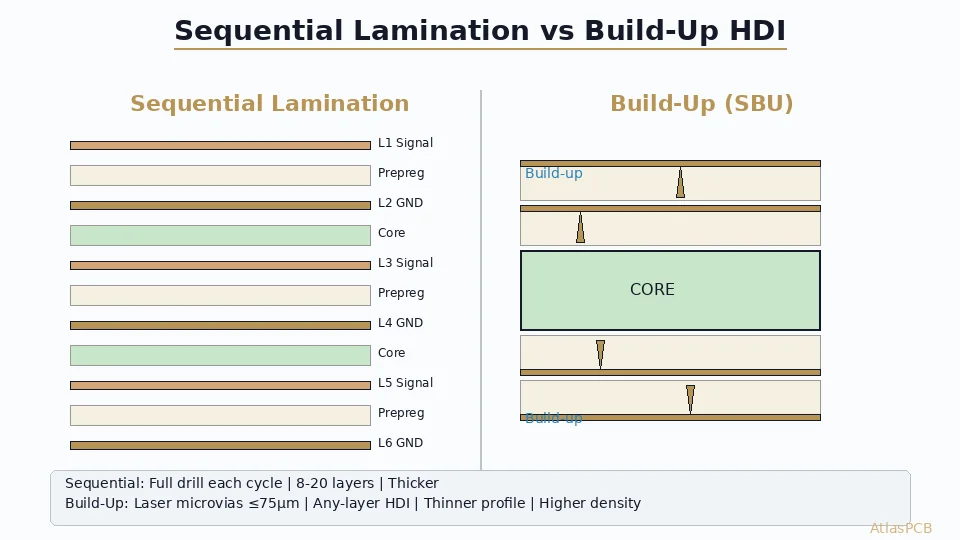

Sequential lamination builds a PCB by bonding pre-fabricated double-sided cores together with prepreg layers, drilling through-holes or blind vias at each stage:

1. Core fabrication — Etch individual double-sided cores (typically 0.1-0.4 mm thick)
2. First lamination — Bond 2-4 cores with prepreg; drill and plate through-vias
3. Second lamination — Add outer cores; drill new through-vias connecting outer layers
4. Repeat — Continue until all layers are integrated
5. Final processing — Surface finish, solder mask, routing

When Sequential Lamination Excels

Sequential lamination remains the preferred choice for:

• High layer counts (16-40+ layers) — Backplanes, server boards, networking equipment
• Heavy copper requirements — Power planes at 2-4 oz copper weight
• Through-hole reliability — Applications requiring mechanical PTH connections
• Mixed technology — Boards combining HDI regions with standard-density areas
• Cost-sensitive high-layer designs — When microvia density isn’t needed on all layers

Design Constraints

Build-Up (SBU) HDI: Maximum Density

Process Overview

Build-up technology starts from a central core and adds layers one at a time using dielectric film lamination and laser via drilling:

1. Core preparation — Fabricate a conventional 2-4 layer core
2. Dielectric application — Laminate RCC (Resin Coated Copper) or ABF film
3. Laser drilling — CO₂ or UV laser creates microvias (50-100 μm diameter)
4. Metallization — Desmear, electroless copper seed, electrolytic copper plating
5. Pattern and etch — Define trace geometry on the new layer
6. Repeat — Build additional layers (typically 1-5 per side)

The Any-Layer HDI Advantage

The most advanced form of build-up HDI — any-layer or ELIC (Every Layer Interconnect) — allows microvias to connect any adjacent layer pair without restrictions. This eliminates the traditional constraint where vias consume routing area on intermediate layers.

Density comparison:

Design Capabilities

Head-to-Head Comparison

Routing Density

Build-up HDI wins decisively on routing density per unit area:

• Via capture pad area: Build-up microvias use 0.02 mm² per connection vs 0.12 mm² for mechanical vias — a 6× improvement
• Fanout efficiency: A 625-pin BGA at 0.5 mm pitch requires 2 build-up layers vs being physically impossible with sequential lamination
• Trace density: 30/30 μm L/S in build-up vs 75/75 μm in sequential

Reliability

Both processes achieve high reliability when properly designed, but through different mechanisms:

Sequential lamination strengths:

• Through-hole vias survive 1000+ thermal cycles (-55°C to +125°C)
• Barrel crack resistance proportional to copper thickness (25+ μm typical)
• Proven qualification data spanning decades

Build-up HDI strengths:

• Filled and capped microvias eliminate trapped moisture/flux
• Shorter current paths reduce resistive heating
• Lower CTE mismatch (thinner dielectric layers = less Z-axis expansion)
• Stacked microvias with copper filling achieve >1000 cycle reliability per IPC-6012E

Caution with stacked microvias:

• Stacking more than 3 unfilled microvias significantly reduces reliability
• Always specify copper-filled microvias for stacks of 3+
• Target fill ratio >90% verified by cross-section

Cost Structure

Manufacturing Lead Time

• Sequential lamination: 3-5 weeks for 16+ layer boards
• Standard build-up (1+N+1, 2+N+2): 4-6 weeks
• Any-layer HDI (3+N+3 and above): 5-8 weeks

Decision Framework: Which Process to Choose

Choose Sequential Lamination When:

1. BGA pitch is ≥0.8 mm with manageable pin counts (<400)
2. Design requires >2 oz copper on power planes
3. Total layer count exceeds 20 (backplane-class)
4. Budget constraints prohibit HDI premium
5. Thermal cycling requirements exceed 2000 cycles
6. Prototype turnaround is critical (faster in some regions)

Choose Build-Up HDI When:

1. BGA/CSP pitch is ≤0.65 mm
2. Package pin count exceeds available routing channels
3. Board size is constrained (wearables, mobile, SiP modules)
4. Signal integrity requires shorter via stubs
5. High-speed serial links need controlled via impedance
6. Weight reduction is critical (aerospace, portable devices)

Hybrid Approach: Sequential + Build-Up

Many modern designs combine both approaches:

• Core section: Sequential lamination for power distribution and ground planes
• Outer build-up layers: Microvia layers for high-density signal escape

This hybrid (designated in IPC notation as N+Core+N, e.g., 2+8+2) provides the best balance of density, reliability, and cost for designs like smartphones, automotive ADAS modules, and networking ASICs.

Material Selection Impact

Sequential Lamination Materials

• Standard FR-4 (Tg 170°C): Cost-effective for ≤10 Gbps designs
• High-Tg FR-4 (Tg 180-210°C): Required for lead-free assembly and high-reliability
• Low-Dk/Df laminates (Megtron 6, TU-872): For >10 Gbps signal integrity
• Polyimide: For extreme thermal environments (-65°C to +260°C)

Build-Up Materials

• ABF (Ajinomoto Build-up Film): Industry standard for any-layer HDI; Dk ~3.3 at 1 GHz
• RCC (Resin Coated Copper): Traditional build-up; lower cost than ABF
• Low-loss ABF variants: For 56+ Gbps applications (Df < 0.005 at 10 GHz)
• Photosensitive dielectric: Enables via formation without laser (limited to large vias)

Design for Manufacturability Tips

For Sequential Lamination

1. Maintain drill-to-copper clearance ≥ 0.2 mm on all inner layers
2. Avoid aspect ratios > 10:1 — request back-drill for thick boards
3. Stagger buried vias between lamination cycles to avoid alignment stacking
4. Include test coupons for buried via reliability verification

For Build-Up HDI

1. Match via-in-pad to BGA pitch — don’t place microvias between pads
2. Copper-fill all stacked vias — specify in fabrication notes
3. Design for ±25 μm registration — account for layer shift in your clearances
4. Use teardrop connections at microvia-to-trace junctions
5. Keep build-up dielectric uniform — varying thickness degrades via reliability
