IPC-A-610 Class 3 Inspection: Workmanship Standards for High-Reliability PCB Assembly

What IPC-A-610 Actually Covers

IPC-A-610, titled “Acceptability of Electronic Assemblies,” is the most widely used standard for judging the quality of assembled PCBs. Now in its ninth revision (IPC-A-610H, released 2024), it provides detailed visual criteria — with hundreds of photographs — showing what constitutes acceptable, process indicator, and defect conditions for every aspect of a populated circuit board.

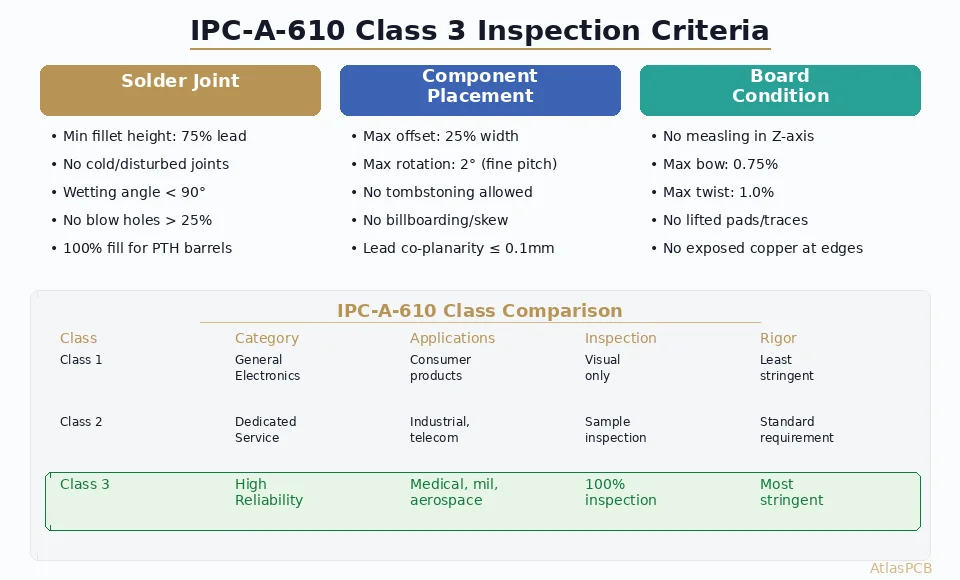

The standard organizes criteria into three performance classes:

• Class 1: General Electronic Products (consumer disposable, short-life)
• Class 2: Dedicated Service Electronic Products (industrial, commercial)
• Class 3: High-Reliability Electronic Products (medical, military, aerospace)

This article focuses on Class 3 requirements — the most stringent level, where every solder joint, every component placement, and every board surface must meet explicit accept/reject criteria.

Why Class 3 Exists

Class 3 was designed for applications where electronic failure has consequences beyond inconvenience:

• Medical devices: A solder joint failure in a pacemaker or ventilator can be fatal
• Aerospace/avionics: An assembly defect in a flight control system can cause aircraft loss
• Military systems: Equipment must survive extreme environments and extended service life
• Spacecraft: No repair possible once deployed — every joint must be right the first time

The core philosophy: continuous, reliable operation is mandatory, and there is no acceptable level of defect. Conditions that Class 2 accepts as “process indicators” (not ideal but acceptable) are classified as “defects” in Class 3, requiring rework or rejection.

Solder Joint Criteria — The Heart of Class 3

Through-Hole (PTH) Solder Joints

Through-hole solder joints in Class 3 assemblies must demonstrate:

Fillet requirements:

• Minimum solder fill: 75% of barrel height (Class 2 requires only 50%)
• Solder fillet must wet to the lead and the pad on both top and bottom sides
• Fillet must be visible and continuous — no gaps, cracks, or non-wetting

Wetting angle:

• Contact angle between solder and pad must be < 90° (good wetting)
• Smooth, concave fillet profile indicates proper intermetallic formation
• Convex (balled) solder profiles indicate non-wetting — defect in all classes

Barrel fill:

• For Class 3 PTH: solder must be visible in the barrel and show evidence of capillary fill
• Pin-in-paste (intrusive reflow) joints must meet the same barrel fill criteria as wave-soldered joints
• No voiding visible at top or bottom pad surfaces

SMT Solder Joints — Chip Components (0201–2512)

Surface mount chip component solder joints are judged by six criteria:

1. Side overhang (A): Maximum 25% of component width (Class 2 allows 50%)
2. End overhang (B): Component metallization must not extend beyond the pad
3. Side fillet height (C): Minimum solder wetting to component side metallization
4. End fillet height (D): Minimum 25% of component height or 0.5 mm, whichever is less
5. Heel fillet (E): Solder must wet continuously from pad to component termination
6. Fillet width (F): Equal to or greater than component termination width

Class 3 specifics:

• No solder balls or splatter within 0.13 mm of uncoated conductors
• Maximum 1 void per joint (visible without magnification)
• No disturbed or cold joints (grainy, dull appearance)
• No dewetting (solder pulls away from pad surface)

BGA Solder Joints

BGA inspection in Class 3 requires X-ray examination for every board (100% inspection):

X-ray criteria:

• Voiding < 25% of ball area (measured from X-ray image)
• No head-on-pillow (HoP) defects — ball must show complete merge with paste deposit
• No bridging between adjacent balls
• Ball diameter uniformity: within 20% of nominal across the array
• No missing balls (100% ball count verification)

Cross-section criteria (periodic validation):

• Intermetallic compound (IMC) thickness: 1–3 μm (too thin = no bond, too thick = brittle)
• No Kirkendall voids at the IMC interface
• Crack-free solder/pad interface after thermal cycling coupon tests

Component Placement Tolerances

Chip Components (Resistors, Capacitors)

Fine-Pitch ICs (QFP, QFN)

Fine-pitch components (≤ 0.5 mm pitch) have additional constraints in Class 3:

• Lead-to-pad offset: maximum 25% of lead width
• Heel fillet mandatory on all leads (no exceptions)
• Lead co-planarity: ≤ 0.10 mm (measured before placement; leads exceeding this must be reformed)
• Solder bridging between any two leads: defect requiring removal and re-inspection

Odd-Form Components (Connectors, Switches, Transformers)

• All mechanical fasteners must be secure and properly seated
• Connector pins must show full wetting in plated through-holes (75% barrel fill minimum)
• Stand-off height between component body and board: per manufacturer specification ±10%
• Press-fit pins must show proper hole deformation without barrel cracking

Board and Assembly Condition

Cleanliness (IPC-A-610 Section 10)

Class 3 cleanliness requirements go beyond visual inspection:

Ionic contamination:

• Maximum 1.56 μg NaCl equivalent per cm² (ROSE test)
• For no-clean processes: validate with Surface Insulation Resistance (SIR) testing
• Ion chromatography for Class 3 when flux residue is present

Particulate contamination:

• No loose solder balls on the assembly
• No foreign material under components (especially under BGAs and QFNs)
• No conductive particles near uncoated conductors

Flux residue (no-clean process):

• Residue must not bridge between conductors
• No white/crystalline residue (indicates incomplete reflow or wrong flux type)
• Residue must not interfere with test probe contact or conformal coating adhesion

Board Damage Criteria

Conformal Coating (IPC-A-610 Section 12)

When [conformal coating]/blog/conformal-coating-pcb/) is specified for Class 3:

• Coverage must be complete and uniform on all specified areas
• No bubbles > 0.5 mm diameter
• No de-wetting or fisheyes
• No coating on mating connectors, test points, or designated keep-out areas
• Thickness must be within specification for the coating type (typically 25–75 μm for acrylic, 50–130 μm for urethane)

Inspection Methods for Class 3

Visual Inspection Requirements

Class 3 demands 100% inspection of all solder joints and component placements. This means:

• Every joint on every board is examined
• Minimum magnification: 4× for general inspection, 10× for fine-pitch (< 0.5 mm)
• Lighting: uniform, shadow-free illumination at 1000–3000 lux
• Inspector certification: IPC-A-610 CIS (Certified IPC Specialist) or equivalent

Automated Optical Inspection (AOI)

[AOI systems]/blog/aoi-spi-inspection-pcb-assembly-quality-control/) complement but do not replace human inspection in Class 3:

• AOI catches 85–95% of defects automatically (placement, bridging, missing components)
• Human inspector verifies AOI results and inspects conditions AOI cannot judge (wetting quality, joint appearance)
• AOI programming must be validated against golden boards with known defects

X-Ray Inspection

Mandatory for Class 3 when hidden joints exist:

• BGA, QFN, LGA: 100% X-ray inspection
• Pin-in-paste through-hole: X-ray to verify barrel fill when visual access is blocked
• Reworked areas: X-ray to verify rework quality

First Article Inspection (FAI)

Before production begins, the first complete assembly undergoes detailed inspection:

• All dimensions verified against IPC-A-610 criteria
• Cross-section of representative solder joints (destructive testing)
• Pull-test or shear-test of selected components
• Documentation of all inspection results for the production file

Common Class 3 Failures and Root Causes

Insufficient Solder Fill (PTH)

Root causes:

• Paste volume too low for pin-in-paste process
• Wave solder temperature too low or contact time too short
• Barrel aspect ratio too high (> 8:1 for standard, > 5:1 for Class 3)
• Poor plating quality in the [PCB barrel]/blog/pcb-plated-through-hole-reliability/)

Prevention:

• Increase paste volume (larger stencil apertures for PTH pads)
• Verify via/hole plating quality per IPC-6012 before assembly
• Use nitrogen-assist wave soldering for improved fill

Tombstoning

Root causes:

• Asymmetric pad design or solder paste deposits
• Reflow profile imbalance (one end reaches liquidus before the other)
• Component too light (small chip resistors/capacitors)

Prevention:

• Follow [DFM guidelines for tombstone prevention]/blog/pcb-tombstoning-causes-prevention-dfm/)
• Ensure symmetric pad geometry and [stencil aperture design]/blog/pcb-solder-paste-stencil-design/)
• Optimize reflow profile for thermal uniformity

BGA Voiding > 25%

Root causes:

• Flux outgassing during reflow
• Moisture absorption in PCB or BGA package
• Inadequate reflow profile (too fast ramp → trapped volatiles)

Prevention:

• Bake boards and components per [IPC-J-STD-033 moisture sensitivity guidelines]/blog/pcb-moisture-sensitivity-baking/)
• Use vacuum-assist reflow for critical BGA assemblies
• Optimize soak zone temperature and duration

The Relationship Between IPC-A-610 and Other Standards

IPC-A-610 works within an ecosystem of interconnected standards:

• IPC-J-STD-001 (Requirements for Soldered Electrical and Electronic Assemblies): Prescriptive process standard — tells you how to solder. IPC-A-610 is the acceptance standard — tells you what’s acceptable.
• IPC-A-600 (Acceptability of Printed Boards): Bare board acceptance before assembly. [IPC-A-600 Class 3 criteria]/blog/ipc-a-600-class-2-vs-class-3-pcb-acceptability/) feed into A-610 Class 3 assembly.
• IPC-6012 (Qualification and Performance Specification for Rigid PCBs): Defines board performance requirements including [IPC standards and PCB classes]/blog/ipc-standards-pcb-classes/).
• IPC-7711/7721 (Rework, Modification, and Repair): Defines acceptable rework procedures. Class 3 limits the number and type of reworks allowed.

For a complete Class 3 program, specify: IPC-6012 Class 3 (bare board) + IPC-J-STD-001 Class 3 (process) + IPC-A-610 Class 3 (acceptance).

Implementing Class 3 in Your Organization

Training Requirements

All personnel involved in Class 3 production must be trained:

• Operators: IPC-A-610 CIS certification (Certified IPC Specialist)
• Inspectors: IPC-A-610 CIS with hands-on inspection experience
• Engineers: Understanding of all relevant IPC standards
• Re-certification every 2 years

Process Control

Class 3 requires documented process control for every operation:

• Solder paste printing: SPI verification with statistical process control
• [Reflow profiling]/blog/reflow-soldering-profile-optimization-lead-free-pcb-assembly/): Validated profile for each board design, re-validated for any change
• Wave soldering: Daily parameter verification (temperature, speed, flux density)
• Rework: Limited to qualified operators with documented procedures

Documentation

Every Class 3 assembly requires a complete quality record:

• Incoming inspection results (PCB, components)
• SPI data for each panel
• AOI results with disposition
• X-ray results for hidden joints
• Manual inspection results
• Any rework documentation (what, where, who, how)
• Final acceptance sign-off
