The Edge AI Hardware Revolution

Edge AI is no longer a concept — it’s shipping in volume. From automotive ADAS cameras and industrial quality inspection systems to smart home devices and wearable health monitors, AI inference is moving to the point of data generation. The Wevolver Edge AI Report 2026, published in collaboration with Siemens, Qualcomm, and industry contributors, identifies PCB-level design as a critical bottleneck in the deployment pipeline.

The numbers tell the story: Qualcomm’s Snapdragon X Elite delivers 45 TOPS, AMD’s Ryzen AI 300 pushes 50-80 TOPS, and specialized accelerators like Hailo-10 achieve 40 TOPS in under 3W. These processors demand PCB substrates that simultaneously manage heat, maintain signal fidelity, deliver clean power, and fit in palm-sized enclosures.

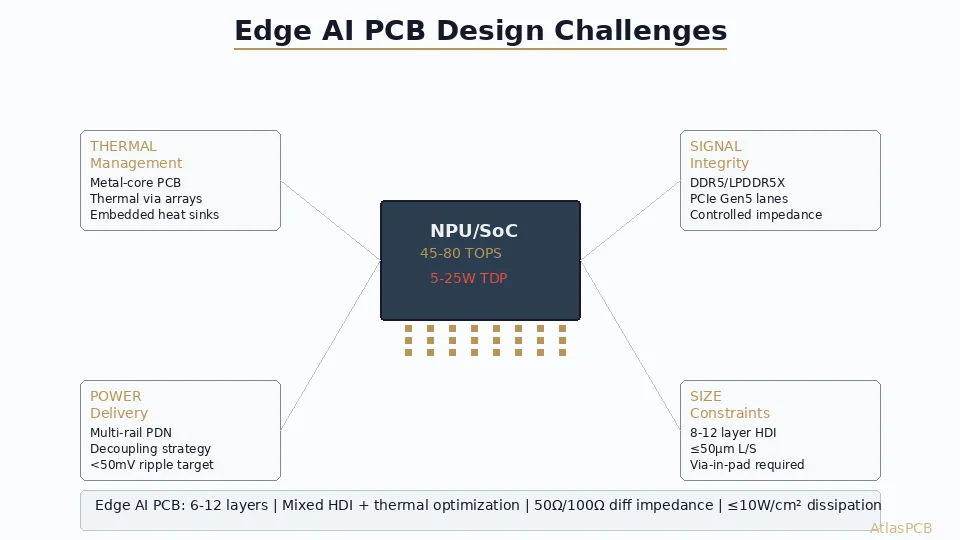

Challenge 1: Thermal Management in Constrained Form Factors

The Problem

Edge AI devices don’t have the luxury of server-class cooling. A 15W NPU in a 50×50 mm board area with a sealed enclosure must dissipate heat through the PCB itself and a small heatsink — no fans, no liquid cooling, no airflow.

Traditional embedded designs dissipated 1-3W. Edge AI processors push 5-25W in similar form factors, creating thermal flux densities of 5-15 W/cm² that can cause:

• Junction temperature exceeding safe operating limits (105-125°C)
• Thermal throttling that reduces inference throughput by 30-50%
• Solder joint fatigue from thermal cycling
• Adjacent component reliability degradation

PCB-Level Thermal Solutions

Thermal via arrays:

• Place under exposed thermal pad of NPU
• Grid pattern: 0.3 mm drill, 1.0 mm pitch (or 0.25 mm drill, 0.8 mm pitch for HDI)
• Filled with copper or conductive epoxy (not air-filled — eliminates voiding during reflow)
• Connect to internal copper planes for lateral heat spreading
• Effective thermal conductivity improvement: 3-5× vs bare FR-4

Heavy copper inner layers:

• 2 oz (70 μm) minimum on planes adjacent to NPU
• 4 oz (140 μm) for designs exceeding 20W without active cooling
• Copper-filled via connections between heavy copper layers
• Trade-off: heavier copper limits fine-pitch routing capability

Metal-core PCB (MCPCB) regions:

• Aluminum or copper core directly under high-power components
• Thermal conductivity: 1-4 W/mK (aluminum) vs 0.3 W/mK (FR-4)
• Hybrid approach: metal-core in power/thermal zone, standard HDI in signal zone
• Suitable for designs exceeding 30W total dissipation

Embedded heat sinks:

• Copper coins (2-5 mm thick) embedded in PCB stackup
• Direct thermal path from chip pad to heatsink mounting surface
• Requires special fabrication: cavity milling → coin insertion → lamination
• Achieves thermal resistance <1°C/W from die to ambient

Thermal Simulation Requirements

For edge AI designs, thermal simulation is mandatory — not optional:

1. Steady-state analysis: Verify junction temperature under maximum sustained inference load
2. Transient analysis: Model burst workloads (10-30 second inference cycles with idle periods)
3. PCB contribution: Model copper percentage on each layer to calculate effective in-plane thermal conductivity
4. Enclosure interaction: Include housing, gaskets, and environmental temperature in boundary conditions

Challenge 2: Signal Integrity for AI Memory and Interconnects

High-Speed Interfaces on Edge AI Boards

Edge AI processors communicate with their memories and peripherals through increasingly demanding interfaces:

DDR5/LPDDR5X Routing on Compact Boards

Memory routing for edge AI is uniquely challenging because:

• Limited escape room: LPDDR5X packages use 0.4-0.5 mm pitch BGA, requiring via-in-pad on every signal
• Length matching tolerance: ±2 ps within a byte group (approximately ±0.3 mm in FR-4)
• Noise sensitivity: AI inference creates bursty memory access patterns with rapid current transitions
• Stack-up constraints: Data signals need solid reference planes directly adjacent (no ground plane sharing)

Best practices for edge AI memory routing:

1. Route all DDR5 signals on the same layer pair (adjacent to unbroken ground)
2. Use 50 μm trace/space for 0.4 mm BGA escape
3. Minimize via stubs — use blind vias or back-drill for signals >6400 MT/s
4. Place decoupling capacitors within 1 mm of each power/VTT pin
5. Keep VREF routing away from switching signals (separate layer or heavy shielding)

PCIe Gen5 in Compact Form Factors

PCIe Gen5 at 32 GT/s has a total channel insertion loss budget of approximately 28 dB. In edge AI designs where the link may be short (20-50 mm), the challenge shifts from length to:

• Via transitions (each via pair costs 1-3 dB)
• Connector contacts (if using M.2 or card-edge)
• Reference plane discontinuities
• Impedance variations from HDI layer thickness tolerance (±10%)

Challenge 3: Multi-Rail Power Delivery Network

Edge AI Power Architecture Complexity

A typical edge AI SoC requires 5-8 separate voltage rails:

Dynamic Load Challenge

The defining characteristic of AI workload power delivery: extreme transient current demand. An NPU switching from idle to full inference in <1 μs creates:

• di/dt: 10-50 A/μs current slew rates
• Voltage droop: Without adequate decoupling, >100 mV undershoot
• Target: Keep ripple <50 mV on 0.8V rail (6.25% tolerance)
• Required PDN impedance: <5 mΩ from DC to 100 MHz

PCB-Level PDN Optimization

1. Dedicated power planes: One full copper plane per major rail (VDD_CORE must have unbroken pour)
2. Distributed decoupling: 100-200 capacitors per rail, placed in concentric rings:
   • 0201 MLCC (100 nF): Within 0.5 mm of BGA pads
   • 0402 MLCC (1-10 μF): Within 2 mm
   • Bulk electrolytic (47-100 μF): Within 10 mm
3. Low-inductance power vias: Use multiple vias per power connection (4-8 vias per BGA power ball)
4. Minimize anti-pad disruption: Keep signal via anti-pads small to preserve power plane continuity
5. Separate analog and digital grounds: Connect at a single point near ADC reference

Challenge 4: Miniaturization and HDI Requirements

Typical Edge AI Board Parameters

Design Strategies for Maximum Density

• Via-in-pad everywhere: Eliminate dog-bone fanout to save 40% routing area
• Stacked microvias: 3-high copper-filled stacks for BGA escape through multiple layers
• Embedded passives: Embedded capacitors in laminate reduce surface component count
• Back-side components: Place decoupling caps on bottom directly under NPU BGA
• Component-free keep-out zones: Minimize thermal pad area wasted by clearance rules

Material Selection for Edge AI

Recommended Laminates

Build-Up Film Selection

For the microvia build-up layers:

• ABF GX-92: Standard, good laser drilling, Dk 3.3
• ABF GZ-41: Low-loss variant, Dk 3.0, Df 0.003 — suitable for high-speed edge AI
• Panasonic R-1515V: Alternative with excellent microvia reliability

Design Workflow Recommendations

1. Start with thermal analysis — Determine required copper weight and cooling strategy before stackup
2. Lock memory topology early — DDR5/LPDDR5X routing drives layer count and stackup
3. Simulate PDN impedance — Verify Z_target is achievable with proposed stackup
4. Iterate stackup with fabricator — Edge AI stackups often push limits; verify DFM early
5. Plan for yield — Fine-feature HDI has lower yield; factor into BOM cost
